Creating Time-series ImageMosaic Layers in GeoServer

This guide shows how to create an ImageMosaic layer in GeoServer with a time dimension. Once created, the WMS layer can be added to TerriaMap and displayed as a time series.

For more details, see the official GeoServer tutorial: https://docs.geoserver.org/latest/en/user/data/raster/imagemosaic/tutorial.html

Set up data folder

  • Place all single-band GeoTIFFs into a folder in GeoServer's data_dir
  • Each filename must contain an 8-digit timestamp in YYYYMMDD format (e.g., BONHS2_chla_20190717.tif)
  • Add indexer.properties and timeregex.properties configuration files to the folder (see below)
  • Your folder structure should look like this:

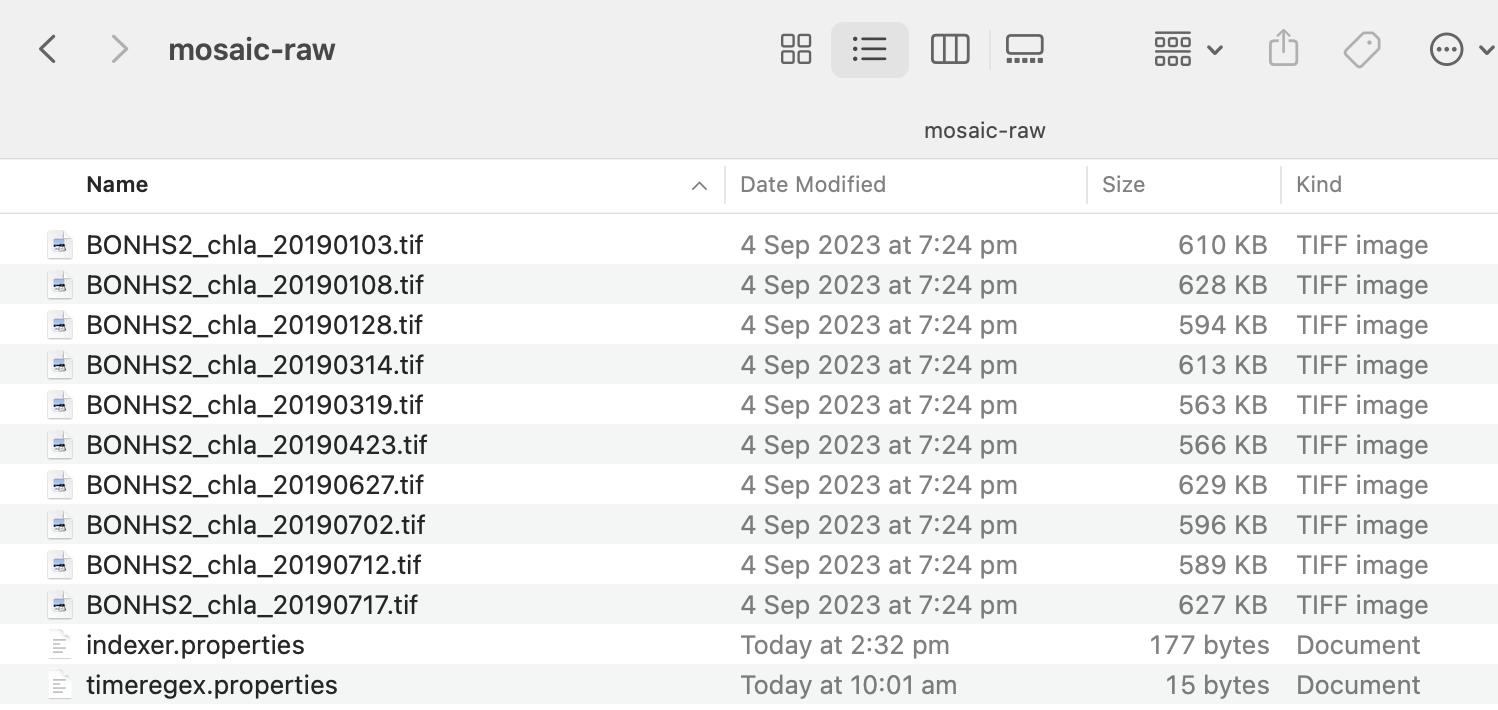

    GeoServer mosaic folder structure

indexer.properties

Schema=*the_geom:Polygon,location:String,time:java.util.Date
PropertyCollectors=TimestampFileNameExtractorSPI[timeregex](time)
TimeAttribute=time
Caching=true
AbsolutePath=false

timeregex.properties

regex=[0-9]{8}

For more information about these configuration files, see: https://docs.geoserver.org/latest/en/user/data/raster/imagemosaic/configuration.html

Create data store and layer in GeoServer

  • Create a new "ImageMosaic" raster data source and select the folder containing your GeoTIFFs and .properties files
  • Publish the mosaic layer

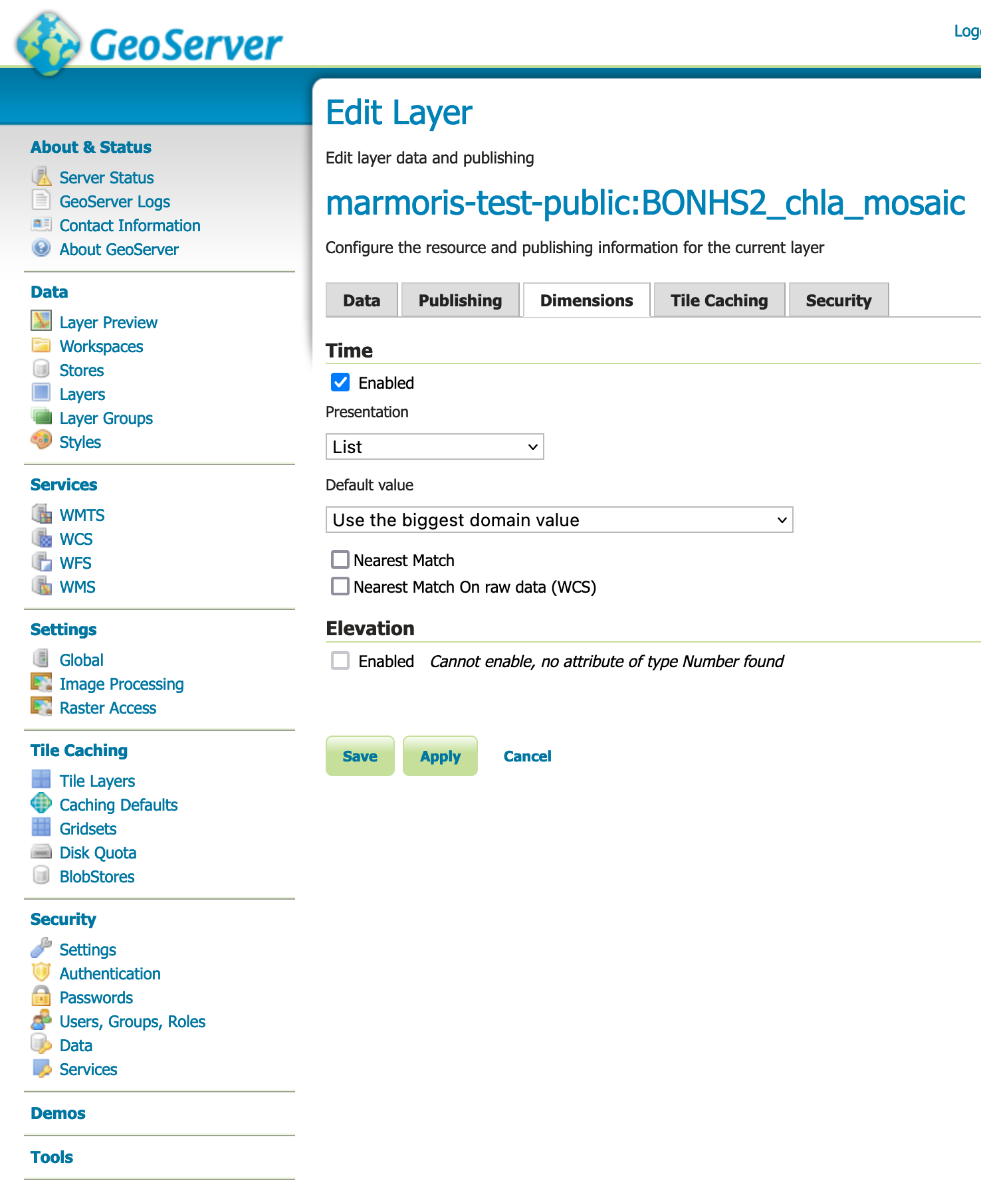

  • Enable the time dimension as shown:
    GeoServer time dimension configuration
  • Configure the layer styling

Example style

This example uses a GnBu color ramp with values from 0.25 to 0.45:

GnBu color ramp

<?xml version="1.0" encoding="UTF-8"?>
<StyledLayerDescriptor xmlns="http://www.opengis.net/sld" xmlns:sld="http://www.opengis.net/sld" version="1.0.0" xmlns:gml="http://www.opengis.net/gml" xmlns:ogc="http://www.opengis.net/ogc">
  <UserLayer>
    <sld:LayerFeatureConstraints>
      <sld:FeatureTypeConstraint/>
    </sld:LayerFeatureConstraints>
    <sld:UserStyle>
      <sld:Name>raster-gnbu</sld:Name>
      <sld:FeatureTypeStyle>
        <sld:Rule>
          <sld:RasterSymbolizer>
            <sld:ChannelSelection>
              <sld:GrayChannel>
                <sld:SourceChannelName>1</sld:SourceChannelName>
              </sld:GrayChannel>
            </sld:ChannelSelection>
            <sld:ColorMap type="ramp">
              <sld:ColorMapEntry label="0.25" quantity="0.25" color="#f0f9e8"/>
              <sld:ColorMapEntry label="0.30" quantity="0.30" color="#bae4bc"/>
              <sld:ColorMapEntry label="0.35" quantity="0.35" color="#7bccc4"/>
              <sld:ColorMapEntry label="0.40" quantity="0.40" color="#43a2ca"/>
              <sld:ColorMapEntry label="0.45" quantity="0.45" color="#0868ac"/>
            </sld:ColorMap>
          </sld:RasterSymbolizer>
        </sld:Rule>
      </sld:FeatureTypeStyle>
    </sld:UserStyle>
  </UserLayer>
</StyledLayerDescriptor>

Notes

Multiple dimensions

You can include more than one dimension in your mosaic. The documentation shows an example of extracting elevation from filenames. Each dimension will appear as a dropdown menu in TerriaMap's workbench.
